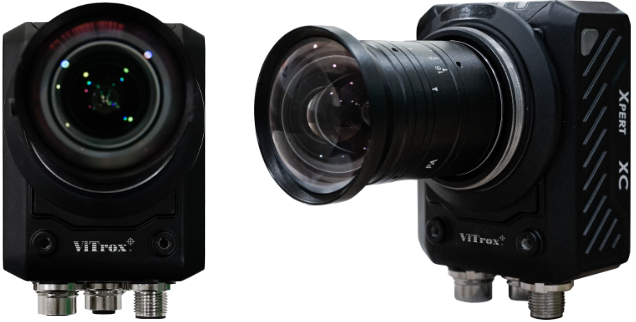

| Model (VisionXpert) | XC-330 | ||
|---|---|---|---|
| Type | Description | XC-330 | |
| Camera | Sensor | CMOS (Global Shutter) | |
| Mega Pixel (MP) | 26.2 | ||
| Resolution | 5120 × 5120 | ||
| Maximum Frame Rate (FPS) | 20 | ||
| Pixel Size | 2.5 μm × 2.5 μm | ||
| Sensor Size | 1.1" | ||
| Pixel Format | Mono 8 | ||
| Tool | Main Category | Featured Tools *5 | |
| Vision Tool | Locating | Position Fixture, Template/Contour Match, Circle/Line Search, Blob Analysis | |
| Image Generating | Circle/Line Fit, Geometry Generation | ||
| Measurement | L2C/C2C/P2C Measurement, Edge Distance, Pixel Count, Histogram | ||
| Recognition | OCR, DL Code Reading, DL Character Recognition & Locating | ||
| Calibration | CalibBoard/N-point/Translation/Distortion/Mapping Calibration | ||
| Register Learning | Register Classifier/Detect/Segment NPU | ||
| Calculation | Single Point Alignment/Rectify, Rotate Calculate, Coordinate Transform | ||
| Image Processing | Filter, Ring Expansion, Enhancement, Stitching, Distortion Correction | ||
| Split Combination | Scribing Split, 2D Array Correct, Box Merge/Overlap/Filter | ||
| Color Processing | Color Extraction/Transformation/Recognition, Color Measurement | ||
| Defect Detection | Surface/Arc/Line/Edge/Anomaly Detection | ||
| Deep Learning Tools | Image Segmentation, Classification, and Object Detection | ||
| Logic Tool | Python Script, Condition-Branch, Group, Logic Module, String Comparison | ||
| Communication Tool | Camera IO, Protocol Parsing/Assembly, Send/Receive Data | ||
| Total Tools | 134 | ||
| I/O Specifications | Isolated Control Input | Number of Inputs | 2 |
| Isolated Control Output | Number of Outputs | 2 | |
| Configurable Bi-directional IO | Number | 2 | |
| Ethernet | Supported Protocol | TCP, UDP and FTP | |
| Serial Communication | Communication Standard | RS-232C Compliant | |
| Extended Interface | One VGA and one USB host | ||
| Mechanical | Lens Mounting | C-mount | |
| Lens Cap | Transparent lens cap [fit for lens size within φ48 mm × 62 mm (φ1.8898" × 2.4409")] | ||
| Camera Lens | Not included (Purchase separately via options) | ||
| Light Source | Not included (Purchase separately via options) | ||
| Installation Specification | Weight | Approx. 545 g (1.2015 lb.) | |
| Dimension (L x W x H) | 116.30 mm × 68.60 mm × 101.80 mm (4.5787" × 2.7008" × 4.0079") | ||
| Note: Disclaimer. | * Data accurate as of product launch. * The product details are subject to change without further notice. |
||
